Xstrata - Kidd Creek Met Site, Timmins, Ontario, Canada

Kidd Met plant

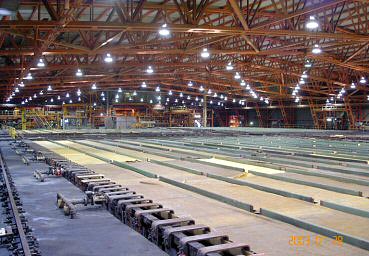

Figure 1: The copper electrolysis operations at Kidd Creek (© Jon Engels)

The Kidd Creek Metallurgy site processes the copper/zinc ore from the Kidd Mine site located 7km away. The metallurgy site has a copper smelter and refinery, a zinc refinery, and indium and acid plants.

The Thickened Tailings Site

In 1973 the Kidd Creek Metallurgy Plant in the town of Timmins, Ontario, Canada was the first site to use thickened disposal of tailings. The theory was that instead of having a conventional impoundment involving embankments that are continually raised as more tailings are disposed of, there would be little or no embankments at all.

The Kidd Creek thickened disposal site currently stores >100 million tonnes of base metal sulphide tailings and by the time the site is expected to close in 2023 >130 million tonnes will be stored. The flotation tailings and jarosite waste are combined and thickened (at the disposal site) to 60 - 65% solids (w/w). The radius of the conical pile is 1.2km and the height of the cone is 25m. The height of the cone increases by 0.2m/y and by closure the height is expected to be 29m.

Cross-section of the Kidd Creek thickened tailings storage facility

Figure 2: Cross-section of the Kidd Creek thickened tailings storage facility (© Jon Engels)

The reasons for thickened disposal at Kidd Creek instead of conventional impoundment storage are mainly due to the topography, hydrology and soil conditions of the area.

  • High dykes would be unsuitable for the area and the risk of instability would be increased due to the extremely poor soil conditions.
  • The tailings are finely ground (45µm) and imported materials would have to be used for dyke construction, thus increasing costs.
  • Predominantly cold climate conditions would only allow a short window for dam construction.
  • The site is situated on high ground surrounded on three sides by Porcupine River tributaries.

Due to the sulphides in the ore feeds, the facility was designed to discharge tailings evenly over the entire area from a central location. The advantage to this is that the tailings can be strategically covered by fresh tailings prior to potential oxidation and consequential acid generation from the tailings surface (during drying). Operational control is essential to promote this design strategy.

Rehabilitation Trials

For many years Kidd Creek have been concerned with how to close the tailings facility. The tailings contain sulphides (pyrite) and the closure techniques considered have been investigated during the operation of the facility. Various studies and rehabilitation trials have been conducted on areas of the tailings within the facility to determine the best long term option to close the facility. Figure 3 shows some of these on-site trials.

Rehabilitation trials on the surface of the Kidd Creek tailings

Figure 3: Rehabilitation trials on the surface of the Kidd Creek tailings (© Jon Engels)
